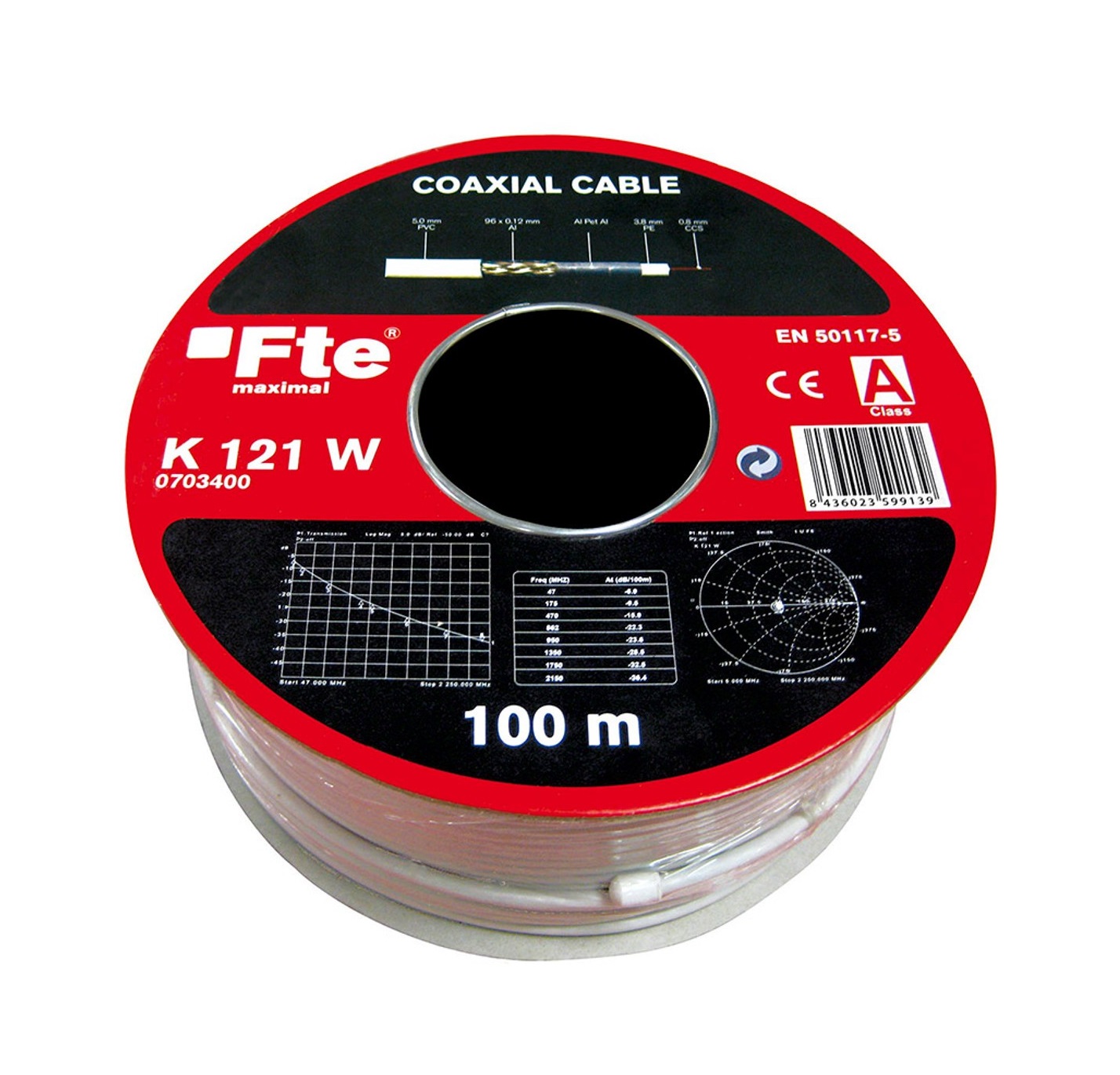

FTE K121W Coaxial Cable 5.0mm 100m
€61.00
Impedance (Ω) 75 +/- 3 Ohms Inner conductor (mm) ø : 0.8 CCS Dielectric meter (mm) ø : 3,54 PE physical foam Foil material: Al / Pet / Al Braiding material: Al Nº of wires(braiding): 96 Braiding compos…
Delivery: 2-3 working days
- Impedance (Ω) 75 +/- 3 Ohms
- Inner conductor (mm) ø : 0.8 CCS
- Dielectric meter (mm) ø : 3,54 PE physical foam
- Foil material: Al / Pet / Al
- Braiding material: Al
- Nº of wires(braiding): 96
- Braiding composition: 16 x 6 x 0,12 mm
- Braiding coverage: 80 %
- Outer jacket (mm) Ø: PVC white
- Jacket outer diameter (mm): 5 mm
- Screening factor (30 – 900 MHz): > 85 dB
- Presentation 100m / cardboard reel
- Reaction to fire: Fca
Additional information
| Brand | FTE Maximal |
|---|---|
| Cable Type | RG58 |
| Material | CCS |
| Length | 100m |
| Cable Diameter | 5.0mm |
| Screening Wires | 96 |
| MPN | 0703400 |
