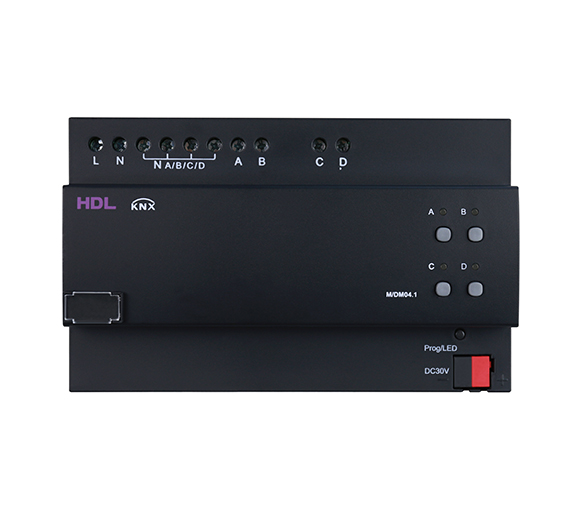

HDL 4CH 1.5A Trailing Edge Dimming Actuator

KNX MOSFET Dimming Actuator has 3 types (2CH 3A, 4CH 1.5A, and 6CH 1.5A) of output circuits, which supports multiple application functions. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol.

Specifications

• 3 types of output circuits: 2, 4 and 6 channels of dimming actuator.
• Supports leading and trailing edge mode. It is recommended to adopt the leading edge dimming mode
• for inductive loads, and the trailing edge dimming mode is recommended for other load types.
• Parallel channels can form heavy current output.
• Manual control: Manual switching, dimming for each channel.
• Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection,
• Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming,
• Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM).
