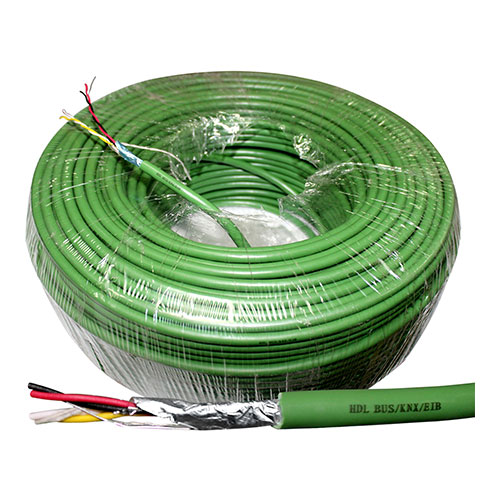

HDL KNX/EIB & Buspro 4 Core Cable with Aluminium Foil Shield 200m

• 4 core shield cable: red, black, white, yellow
• Strong signal transmission capability
• Strong anti-jamming capability

Specifications

Parameters:

• Cable Description: 4 core, Aluminum foil shield , ground line
• Copper Wire Diameter: 0.75~0.85mm
• Cable Diameter: 7.0~8.0mm
• Conductor Resistance: (20℃) <35 ohm/km
• Insulation Resistance: (70℃) >5X106ohm/km
• Impedance: 120 ohm
• Cable withstand Voltage: AC 300V
• 2 Twisted pair (red and black, white and yellow)


Environmental Conditions:

• Working temperature:  -20℃~85℃
• Working relative humidity:  10%~98%
• Storage temperature:  -40℃~+100℃
• Storage relative humidity:  10%~98%
