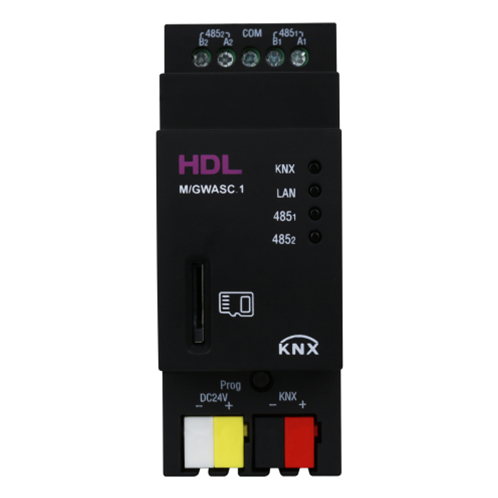

HDL Link KNX Gateway Server M/GWASC.1

KNX Gateway is a protocol conversion gateway based on KNX Bus communication, and enables data exchange with devices of different protocols.

Its main functions include:

• Device list: control feedback, update status
• Supports scene function: add scenes, *area capture scenes, *movie (dynamic) scenes
• Automation function
• Security function
• Clock: local clock, network clock, automatic synchronization of network time
• System detection, device status reporting: device online status, offline status, device abnormal information
• Drive management of third-party products
• Factory reset function
• Data backup and data recovery function

Protocol and software support:

• Internal communication protocols include: https, tcp, udp, etc., and standard mqtt access to third-party servers also supported.
• Support intranet communication, remote access
• Support backup upload and download of APP, Cloud, *SD card, debugging software
• Auxiliary support: KNX Assistance Software, KNX ETS, OnPro , Cloud server
• Online upgrade: upgrade gateway online via KNX Assistance Software, or upgrade other Bus devices through this gateway.
• Note: The functions with * are not yet open for use.

Specifications

Basic Parameters

• Working voltage: 21~30V DC
• Working current: 20mA/30V DC
• Auxiliary voltage: 20~30V DC
• Auxiliary current: 200mA/24V DC
• Communication: KNX, RS485, Ethernet
• Interface:
• KNX connector :1
•  Auxiliary power supply: 1
•  RS485 connector" 2
•  RJ45 port : 1
• SD card slot: 1
• Hardware information: CPU H3@1GHz, 4G RAM, 8G Flash
• Cable diameter of KNX terminal: 0.6 – 0.8mm
• Operation system: Linux 3.2.0 Kernel

External Environment

• Working temperature: -5℃~45℃
• Working relative humidity: ≤90%
• Storage temperature: -20℃~60℃
• Storage relative humidity: ≤93%
• Specifications
• Dimensions: 90×36×63.7 (mm)
• Net weight: 87g
• Housing material: PA66
• Installation: 35mm DIN rail installation
• Protection rating (Compliant with EN 60529) : IP20
