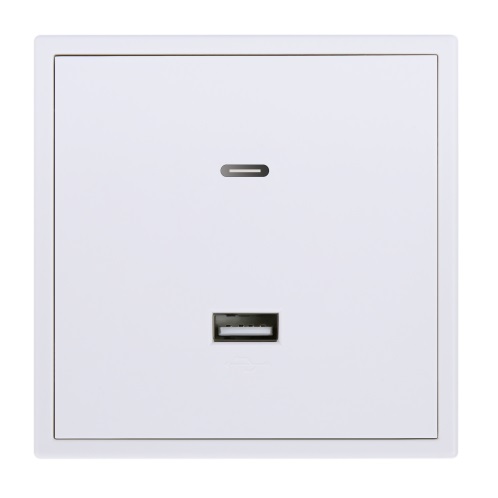

HDL Panel TILE SERIES Ivory White 1xUSB-A 1xUSB-C

• Tile USB2.0 and Type-C Socket is equipped with one Type-C port and one USB port, providing fast charging for Type-C and USB 2.0 devices at the same time.

Specifications

• Rated voltage : 220V AC, 50Hz
• Rated current : 2.2mA/220V AC
• Output power : 20W
• USB-A output : 5V/3A, 9V/2A, 12V/1.5A
• Type-C output : 5V / 3A, 9V / 2.22A, 12V / 1.67A
• USB-A + Type-C output : 5V/3A MAX.
• Working temperature : -5℃~45℃
• Working relative humidity : ≤90% RH, non-condensed
• Storage temperature : -20℃~60℃
• Storage relative humidity : ≤93%
• Dimensions (W X H X D) : 86×86×30.5 (mm)（with plastic frame)
• Net weight : 102.7g（without plastic frame)/113.7g（with plastic frame)
• Housing material : Flame-retardant PC
• Installation : Wall box
• Protection rating (Compliant with EN 60529) : IP20
