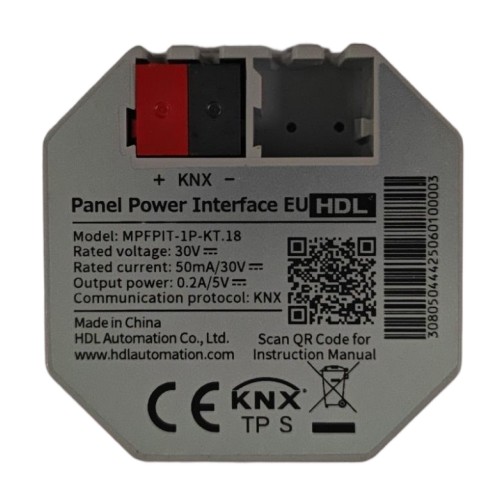

HDL Panel TILE SERIES Power Interface for 1,2,4,8 Button V2.1

• Provides working voltage to panel
• Provides communication signals to panel

Specifications

Basic Parameters

• Working voltage : 21~30V DC
• Communication : KNX

External Environment

• Working temperature : -5℃~45℃
• Working relative humidity : ≤90%
• Storage temperature : -20℃~60℃
• Storage relative humidity : ≤93%

Specifications

• Dimensions : 51.2×51.2×23.1 (mm)
• Net weight : 77.5g
• Installation : Wall box
• Protection rating : (Compliant with EN 60529) IP20
