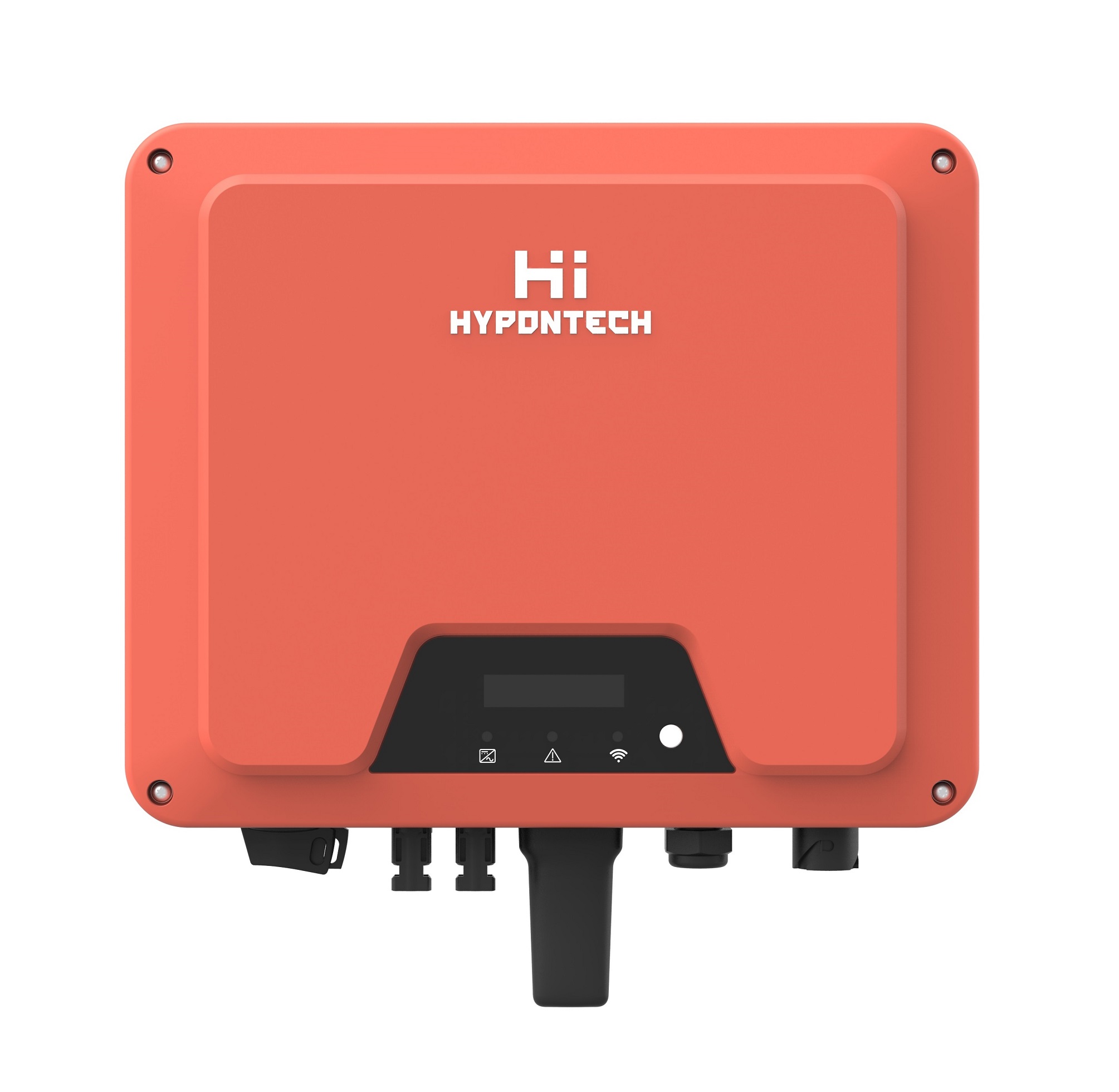

HYPONTECH OnGrid Inverter HPS-5000D Single Phase 5KW

HPS-5000D Inverter 1 Phase 4KW

• Peak Efficiency 98%
• Max DC Overload 40%
• Aluminum Alloy casting
• MES-FCT-CRM  Ifrastructure
• Easy Installation and Service

Specifications

HPS – 4000

​PV Input

• Max PV Power (W) : 7000
• Max Input Voltage (V) : 600
• MPPT Voltage Range (V) : 80-520
• Start Up Voltage (V) : 70 V
• Rated Input Voltage (V) : 360
• Max Input Current (A) : 13
• Max Short Circuit Current (A) : 20
• No. of MPPTs : 2
• No. of Strings Per MPPT : 1

AC Output

• Rated Power (W) : 5000
• Max. Apparent Power (VA) : 5000
• Rated Grid Volatege (Vac) : 220/230/240
• Grid Connection : L-N-PE
• Rated Grid Frequency (Hz) : 50/60
• Max Output current (A) : 23
• Power Factor :  0.8 ind – 0.8 cap
• THDi @Rated Power <3%

Efficiency

• Max  Efficiency : 97.9%
• Euro Efficiency: 97.4%
• MPPT Efficiency: 99.9%

Protection Function

• Anti Islanding Proctection : Intergrated
• PV String Onput Reverse Polarity Protection : Intergrated
• Insulation Resistance Detection :  Intergrated
• Resudula Current Monitoring Unit :  Intergrated
• Output Over Current Protection :  Intergrated
• Output Short Circuit Protection : Intergrated
• Over Voltage Protection :  II(DC), III(AC)
• Surge Protection :    DC Optional , AC Type II

General Data

• Dimensions (W*H*D)(mm) : 395*328*154
• Weght (Kg): 9.8
• Noise Emission (Typical) dB(A) : 20
• User Interface : LCD&LED
• PV connection Type : MC4
• AC Conection Type : Plug in connection
• Communication : RS485/WIFI/4G/LAN
• Colling Method : Natural Cooling
• Operating Ambient Temperature (C) : -25 to +60
• Relative Humidity (%) : 0 -100
• Max Operating Altitude (m) : 3000
• Protection Class : IP65
• Climatic Category (IEC 60721-3-4) :  4K4H
• Topology : Tranformerless
• Night Consumption (W) : <1
