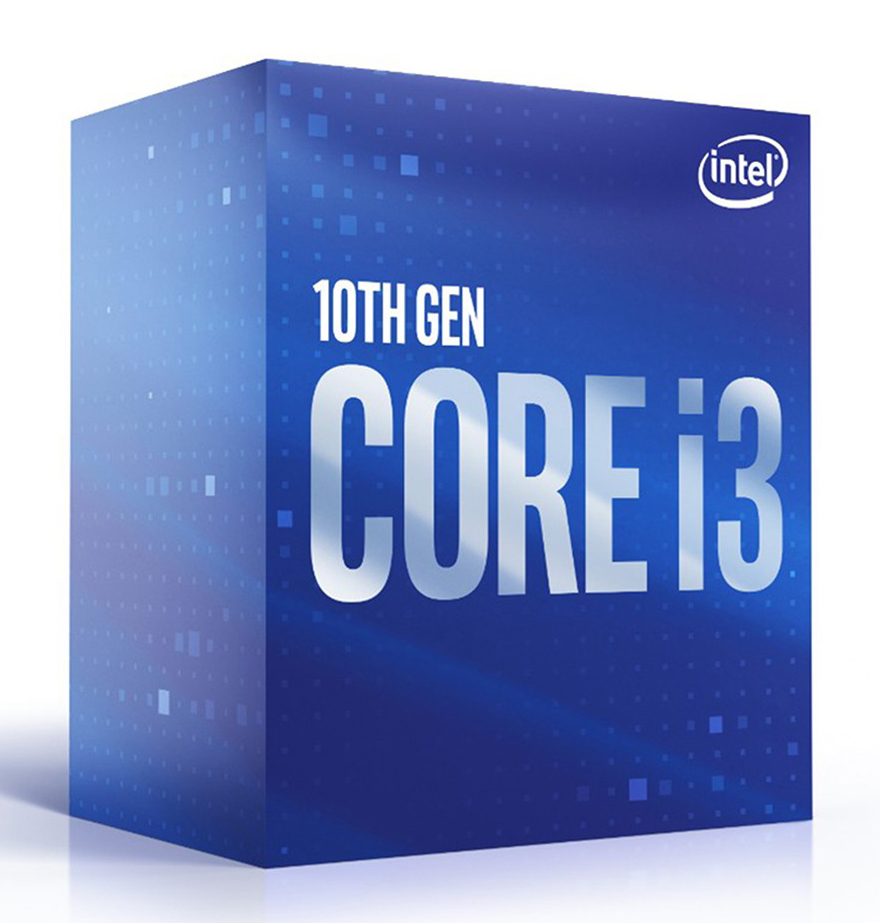

Intel Core i3 CPU 10100 3.6GHz 6MB 1200 Box

The Core i3-10100 3.6 GHz Quad-Core LGA 1200 Processor from Intel has a base clock speed of 3.6 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology.

With Intel Turbo Boost 2.0, the maximum turbo frequency this processor can achieve is 4.3 GHz. Additionally, this processor features 4 cores with 8 threads in an LGA 1200 socket, has 6MB of cache memory, and 16 PCIe lanes. Having 4 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 8 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core.

This processor also supports 128GB of dual-channel 2666 MHz DDR4 RAM and utilizes 10th-generation technology. Graphically, the Core i3-10100 uses the integrated Intel UHD Graphics 630 chipset, which has a base frequency of 350 MHz and a dynamic frequency of 1.1 GHz.

Specifications

General:

• CPU Model: Intel Core i3-10100
• CPU Socket: LGA 1200
• Manufacturing Process: 14 nm
• Maximum CPU Configuration: 1S
• Maximum Number of PCIe Lanes: 16 (Revision 3.0)
• Unlocked: No

Performance:

• Number of Cores: 4
• Number of Threads: 8
• Base Clock Speed: 3.6 GHz
• Maximum Boost Speed : 4.3 GHz
• L3 Cache: 6 MB

Memory Support:

• Maximum Capacity: 128 GB
• Memory Support: DDR4 2666 MHz
• ECC Memory: No
• Channel Architecture: Dual Channel
• Maximum Memory Bandwidth: 41.6 GB/s

Power:

• Thermal Design Power (TDP): 65 W
• Included Thermal Solution: PCG 2015C
• Maximum Temperature: 212°F / 100°C
• Thermal Monitoring Technologies: Yes

Technology:

• AES Support: Yes
• Extension: AVX 2.0, SSE 4.1/4.2
• Instruction Set: 64-Bit
• Virtualization: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)

Integrated Graphics:

• Graphics Chipset: Intel UHD Graphics 630
• Maximum Resolution Support: 4096 x 2304 at 60 Hz
• Supported APIs:  DirectX 12, OpenGL 4.5
• Number of Displays: 3
• Maximum Shared Video Memory: 64 GB
• Output Support: eDP, DisplayPort, HDMI
• Base Clock Speed: 350 MHz
• Maximum Boost Speed: 1.1 GHz

Intel:

• Optane Memory Support: Yes
• vPro Support: No
• Performance Technologies: Hyper-Threading, SpeedStep, Turbo Boost 2.0
• Security Technologies: Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions
• Video Technologies: Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
