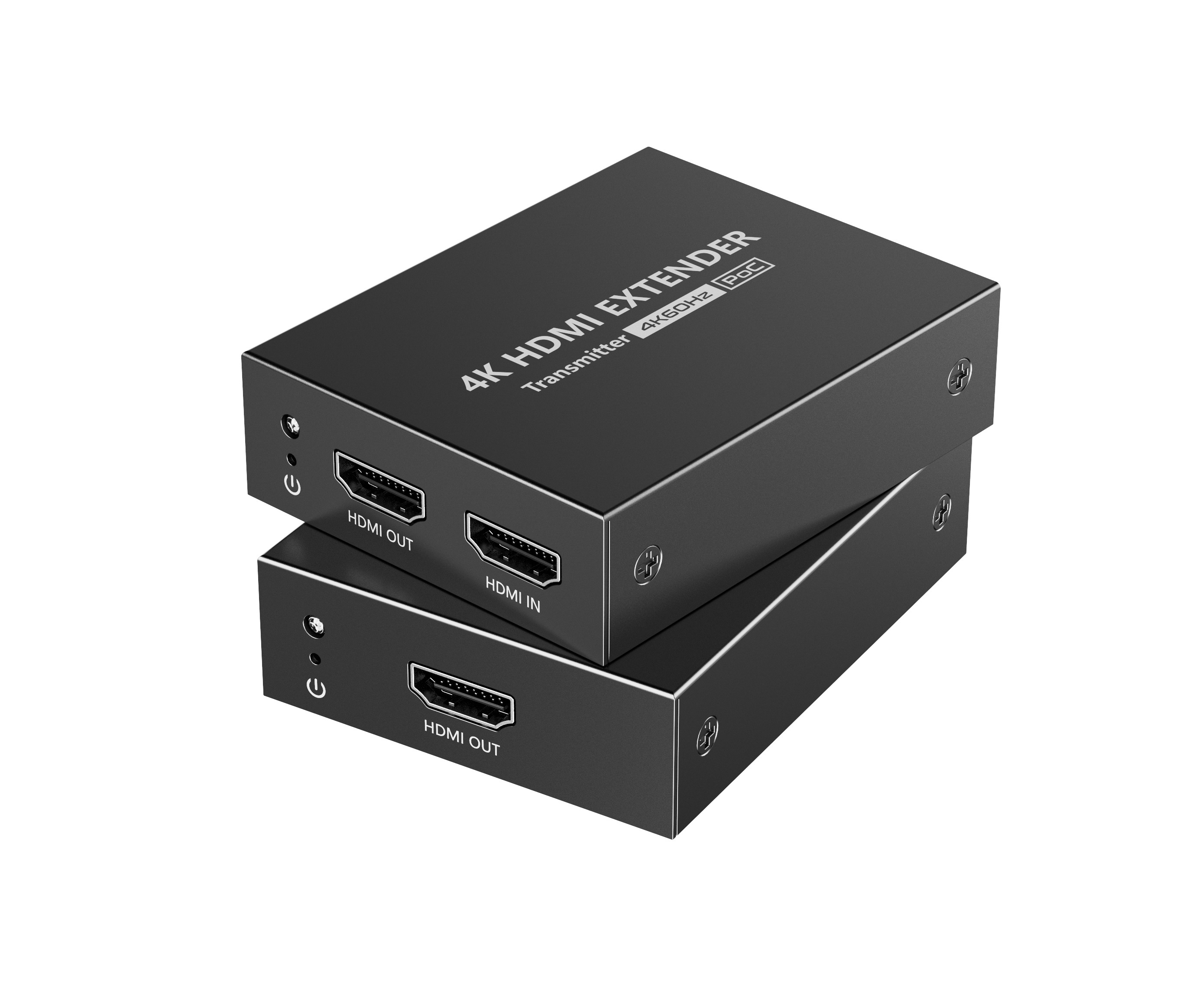

Lenkeng HDMI Extender over Ethernet 50m 4K POC IR Loop LKV465P

• This is an HDMI point-to-point extender kit, it can realize zero-latency transmission
• The 4K@60Hz HDMI signal can be extended by 50m through CAT6/6A/7 network cable
• It supports HDMI loop out, IR passthrough, etc

Specifications

• HDMI Length ≤5m
• Maximum transfer rate 18Gbps
• Maximum transmission bandwidth 600MHz
• EDID passthrough Yes
• Compatibility HDMI 2.0（Deep color, 4K, HDR, YUV4:4:4）
• HDCP 2.2, HDCP1.4
• Resolutions 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840×2160@24/25/30/50/60Hz、3440×1440、2560×1440、 2560×1080、2048×1080、1920×1440、1920×1080、 1280×960、1280×800、1280×768、1680×1050、 1360×768、1366×768、1600×900、1024×768、800×600
• Transmission distance 4K transmission distance 50m
• 1080p transmission distance 70m
• Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
• IR interface 1x 3.5mm IR OUT Female
• 1x 3.5mm IR IN Female
• Receiving range ≤5m
• Infrared frequency 20KHz~60KHz
• Power Supply TX: DC5V/2A
• RX: PoC（Powered by TX）
• Power Consumption TX+RX＜5.5W
• Working temperature -20℃~60℃
• Storage temperature -30℃~70℃
• Humidity 0~90%RH（No condensation）
• Housing Metal
• Weight TX : 130g
• RX：130g
• Color Black
• Dimensions 75.0(L)*60.0(W)*21.0(H)mm
• Protection ESD protection
• 1a Contact discharge level 2 (±4KV)
• 1b Air discharge level 3 (±8KV)
• Implementation of the standard: IEC61000-4-2
• Lightning protection, Surge protection
