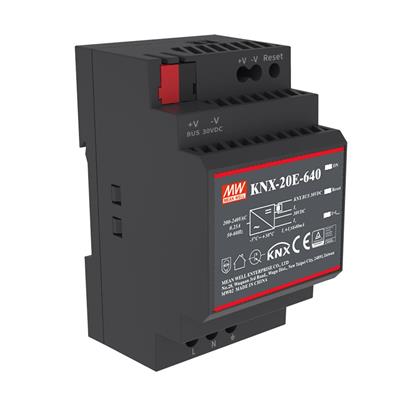

Meanwell KNX-20E KNX Power Supply 640mA

• KNX switching power supply with integrated choke
• can be mounted directly on the DIN rail
• closed design, touch-protected screw terminals
• Universal input
• Overload protection through current limiting, auto-recovery
• protected against short circuit, overload, overvoltage
• SELV

Specifications

• Input voltage (AC): 180 – 264 V
• Input voltage (DC): 254 – 370 V
• Current: 640 mA
• Power: 19,2 W
• Efficiency: 86
• Inrush current: max. 40 A
• Connection: Scharub connection
• Length: 52,5 mm
• Width: 90 mm
• Height: 54,5 mm
