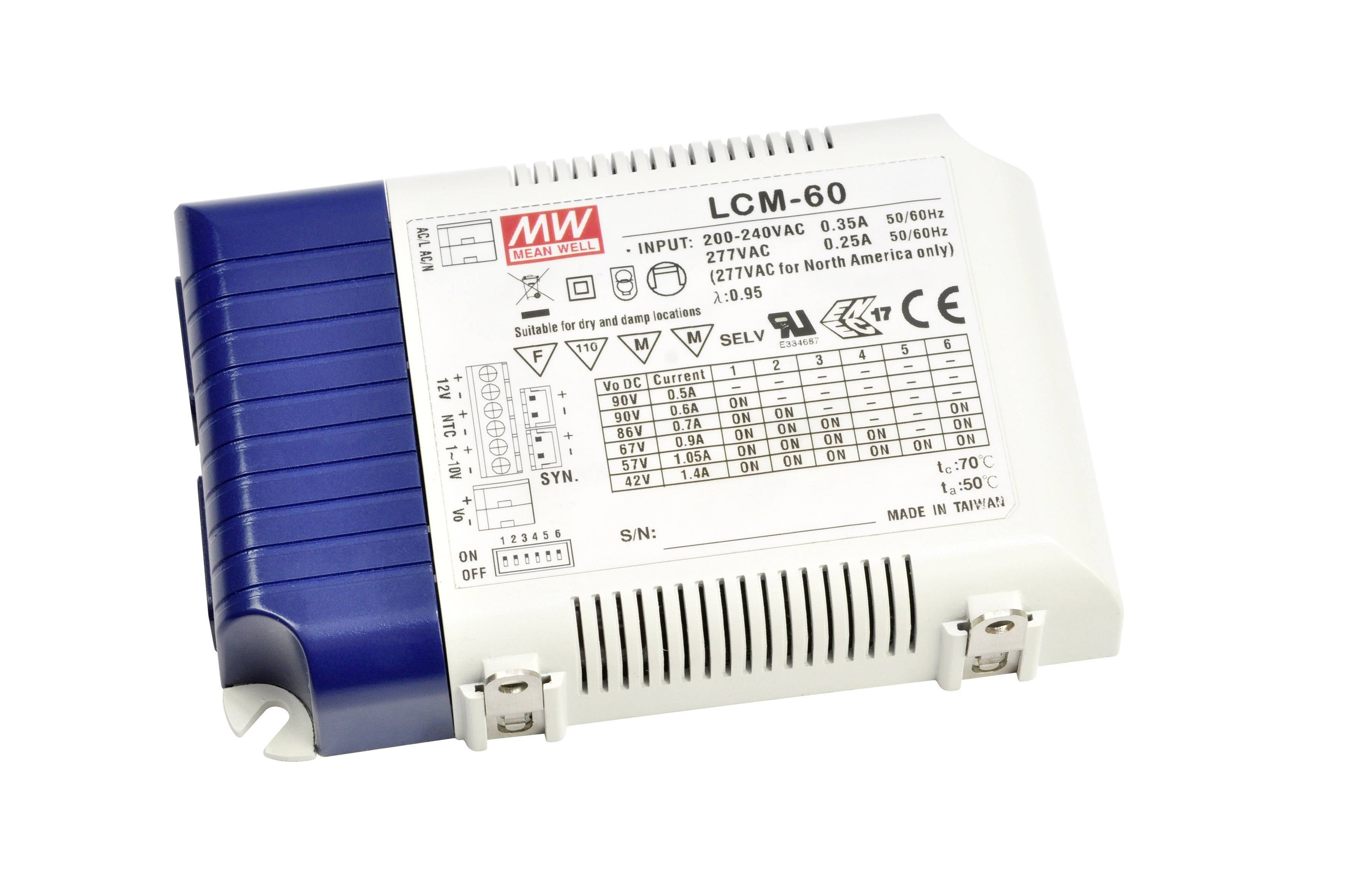

Meanwell LCM-60 Multi-Stage LED Driver 60W

• 180~295VAC input for 40W/60W, 180~277VAC input for 25W
• Constant current mode
• Built-in active PFC function
• Multiple-stage output current level selectable by DIP switch
• Built-in 3 in 1 dimming function for non DA type (0~10VDC, PWM signal or resistance, dim-to-off)
• Built-in DALI interface and push dimming function for DA type
• Suitable for indoor LED lighting applications

Specifications

• AC-DC Multi-Stage LED driver Constant Current (CC); Modular output 0.5A/0.6A/0.7A/0.9A/1.05A/1.4A; dimming 0-10Vdc & PWM; extra 12Vdc at 50mA
• Net weight: 250G
• Technology :AC/DC
• Constant Current: C.C.
• Box Type :Enclosed Plastic housing
• Output Power 60W
• Output Voltage : 42 , 57 ,67 ,86 ,90
• Output Current :1.4A
• Input Voltage :180 – 295V
• Width :81.5mm
• Height :23mm
• Depth:123.5mm
• Control Signals :Vaux auxilary
• Dimming Technology :0-10V
