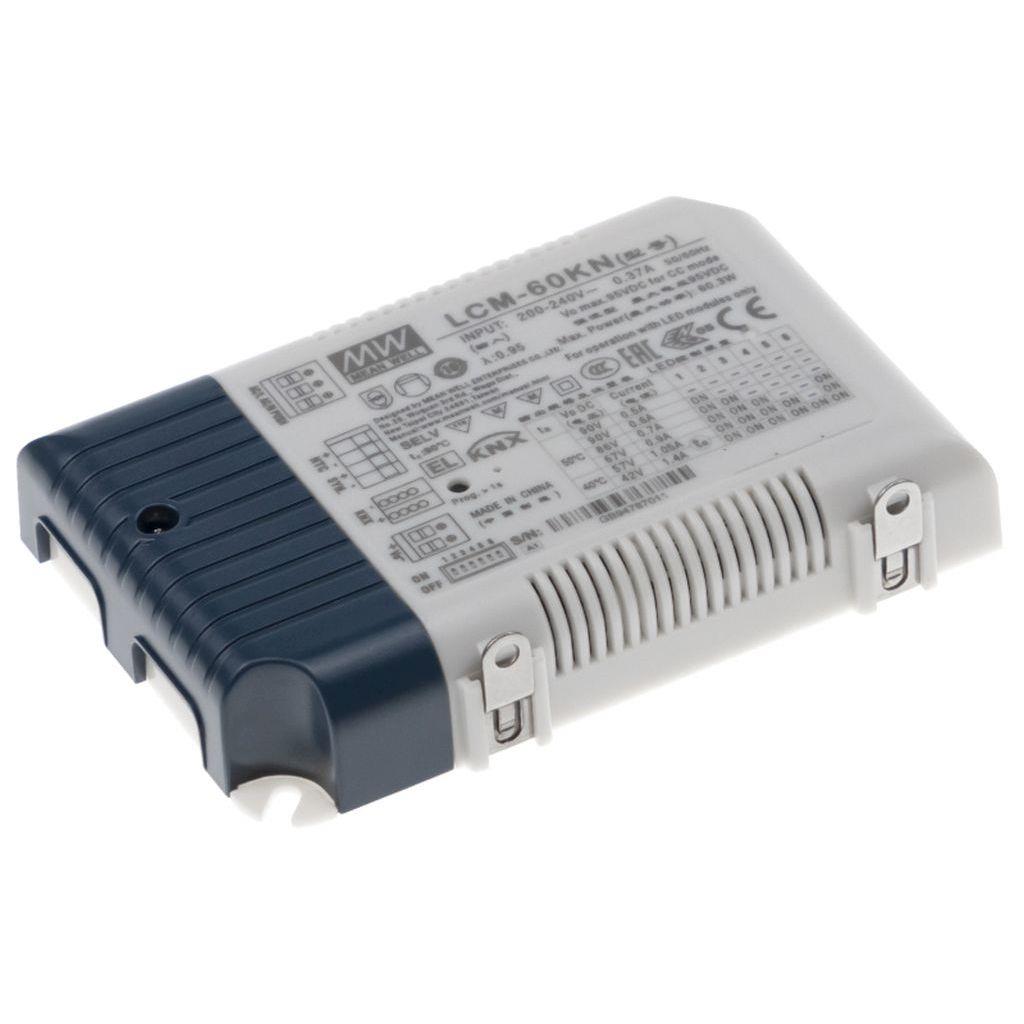

Meanwell LCM-60KN KNX Multi-Stage LED Driver 60W

• Constant current mode output with multiple levels selectable by dip switch
• KNX protocol
• Supports Emergency Lighting
• Integrated constant light output
• Integrated KNX push button interface
• Synchronisation of up to 10 units
• Functions: manual dim, operation hours, power consumption feedback and log/linear curve selection etc
• 3 years warranty

Specifications

Description : AC-DC Multi-Stage LED driver Constant Current (CC); Modular output 0.5A/0.6A/0.7A/0.9A/1.05A/1.4A; dimming KNX and push
Application : LED EN 61347
Net weight : 240g
Technology : AC/DC / Constant Current C.C
Power Format : Box Type – Enclosed / Enclosed Plastic housing
Output Power : 60W
Output Voltage (V) : 42,57,67,86,90
Output Current (A) : 0.5,0.7,0.9,1.05,1.4
Input Voltage (V) : 180 – 295
IP Rating : No IP assigned
Width : 81.5mm
Height : 23mm
Depth : 123.5mm
Control Signals : KNX
Dimming Technology : KNX / Push Button
Housing Type : Plastic
