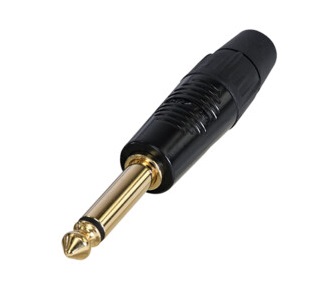

Neutrik REAN RP2CB 6.3mm Mono Plug

Black plated housing, gold plated contacts

Specifications

• Title: RP2C
• Connection Type: Plug
• Contact rated current depends on mating connector mΩ
• Contact resistance depends on mating connector mΩ
• Dielectric strength 1 kV dc
• Insulation resistance > 1.5 GΩ
• Lifetime > 1000 mating cycles
• Cable O.D. 4 – 7 mm
• Wiring Solder contacts
• Wiresize (max.) 1.0 mm² / 18 AWG
• Boot PA6+30% GF
• Contact Brass ( CuZn39Pb3)
• Contact plating Nickel / Au
• Shell Zinc alloy
• Shell plating Nickel / Black
• Strain relief POM
• Temperature range -20 °C to +70 °C
• Flammability UL 94 HB
• Solderability complies with IEC68-2-20
