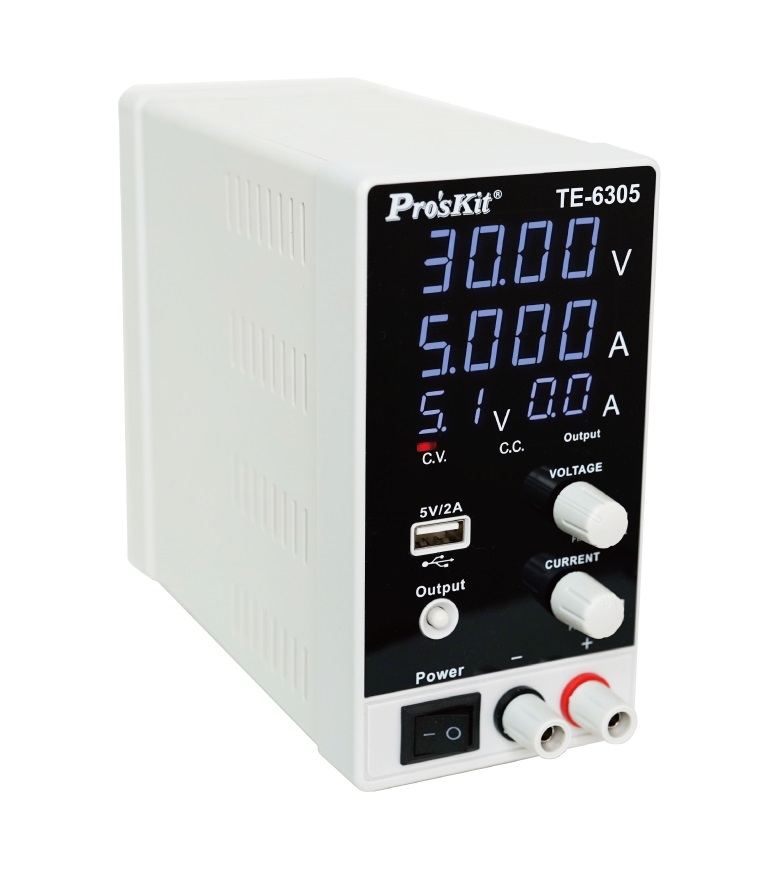

Proskit Bench Switching Power Supply 0-30V / 0-5A

• Constant voltage and current, high precision, stable output
• Full function protection
• Low ripple and low noise

Specifications

• Input :100 – 240V~ 50/60Hz
• Output : (adjustable) 0 – 30 V
• Current : (adjustable) 0 – 5 A
• Load regulation (voltage) : CV≤0.1% +10mV
• Signal regulation (voltage) : CV≤0.01% +3mV
• Ripple & noise (voltage) : CV≤5mVrms
• Load regulation (current) : LCV≤0.5% +10mA
• Signal regulation (current) : LCV≤0.2% +5mA
• Ripple & noise (current) : CV≤20mArms
• Efficiency : ≥80%
• Display precision : 0.02A/0.2V ± 2digit LED display
• Operating conditions : 0~40°C, umidità relativa: ≤80%
• Dimensions : 190x80x155 cm
• Weight : 0.74 kg
