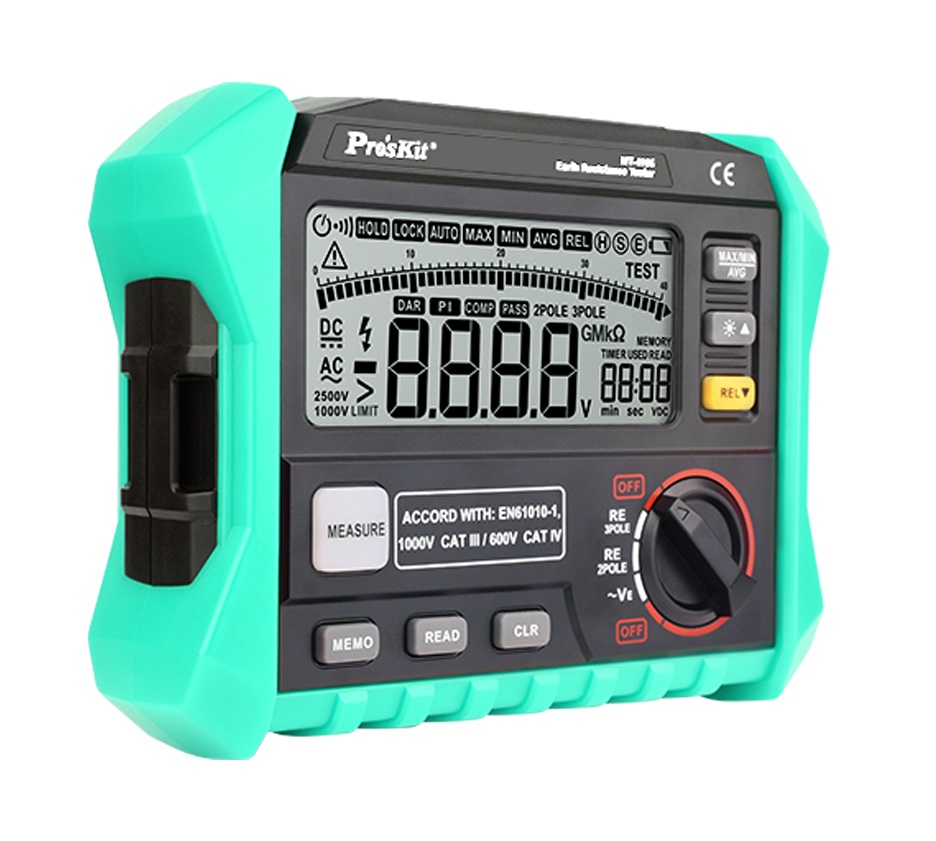

Proskit Digital Earth Resistance Tester MT-4105

Digital Bipolar and Tripolar Earth Resistance Meter, Measurement of Voltage to Earth, Measurement of Maximum/Minimum and Average Values, Data Storage for up to 100 Measurements, No Data Loss in the Event of a Power Failure. Measurement of Interference Voltages. It can be used for measurements such as: High Voltage Pylons, Buildings, Earthing of Electrical Systems, Mobile Telephone Base Stations, High Frequency Transmitters, etc., Monitoring and Design of Lightning Protection Systems, Resistance Measurements via Auxiliary Earth Electrodes. The instrument is controlled by an intelligent microcontroller chip with high reliability and precision. The instrument is equipped with a large, easy-to-read, backlit digital liquid crystal display. Low battery indicator, Auto Power Off.

Specifications

• Measurement of earth resistance : 0 towards ~ 400 towards
• Measurement of ground voltage : 200V
• Display : LCD
• Indication out of reach : Yes
• Low battery indication : Yes
• Automatic shutdown : Yes
• Insulation : CAT III 1000V/CAT IV 600V
• Standard : EN-61010-1
• Power supply : 8×15 batteries.V AA (LR6) Not included
• Color : Grey/Green
• Equipment : Carrying Bag, Tool, Test Kit Set, Manual
• Dimensions : 188x145x73 mm
• Weight : 600 g
