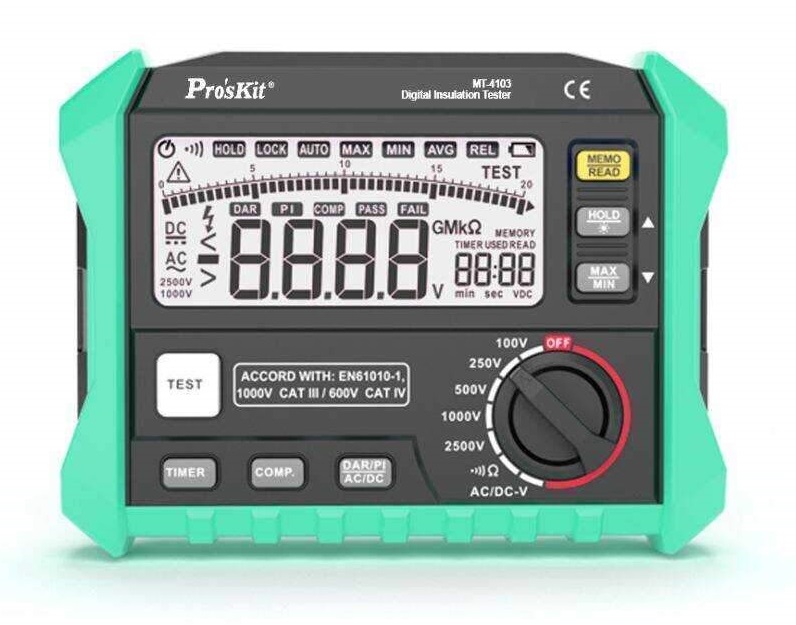

Proskit Digital Insulation Tester MT-4103

• Digital insulation meter, AC/DC voltage, insulation resistance, insulation performance evaluation with DAR and PI measurement. With a test voltage up to 2500V and a 200GΩ range, various functions include: low battery indicator, data hold, comp, pass, fail, DAR, PI, MAX/MIN, timer, memo, read, DC, AC, VDC, reverse polarity, continuity, automatic shutdown, this model meets IEC 61010-1 CAT III 1000V safety standards. It is equipped with DAR/PI insulation diagnostics, PASS/FAIL comparison, timer function, data storage and backlit display. Ideal for industrial, electrical and advanced maintenance applications

Specifications

• DC voltage : 1000V
• AC voltage : 750V
• Test Isolamento :  0,1MΩ ~ 200GΩ
• Insulation Resistance Test Voltage : 100V ~ 2500V
• Display Backlit : LCD
• Data hold : Yes
• Low battery indication : Yes
• Automatic shutdown : Yes
• Insulation CAT III : 1000V/CAT IV 600V
• Standard : IEC/EN61010-1
• Overload protection –
• Power supply : Batteries 8×15.V AA Non included
• Special Functions : Digital insulation meter, AC/DC voltage, Insulation resistance, Evaluation of insulation performance with DAR and PI measurement, With a test voltage up to 2500V and a range of 200GΩ, Low battery indicator, Data hold, Comp, Pass, Fail, DAR, PI, MAX/MIN, Timer, Memo, Read, DC, AC, VDC, Reverse polarity, Continuity, Auto power off, Meets IEC 61010-1 CAT III 1000V safety standards, Equipped with DAR/PI insulation diagnostics, PASS/FAIL comparison, Timer function, Data storage, Backlit display, Industrial electrical and advanced maintenance applications
•
• Dimensions : 180x145x73 mm
• Weight : 630 g
