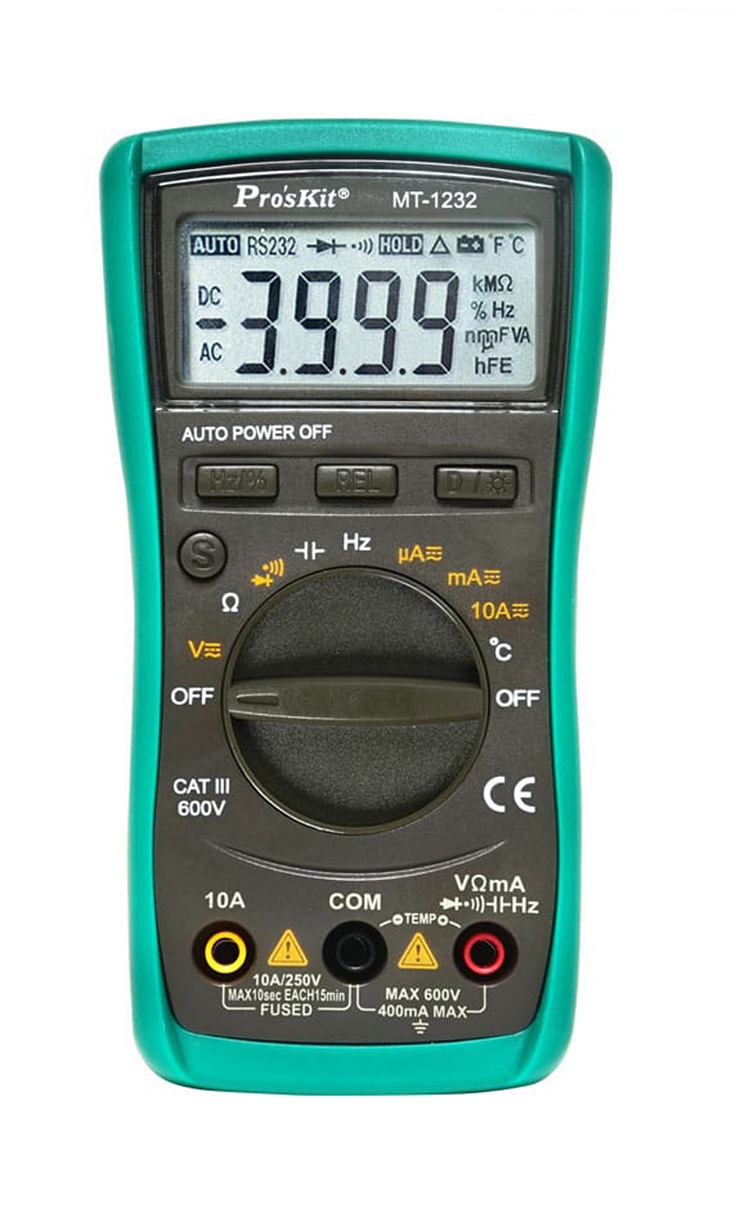

Proskit Digital Multimeter with Autorange and Capacitor Measurement MT-1232
€59.00
Complies with the latest CE CATIII safety standard, 1M drop protection 3 3/4 digits 3999 counts Large, easy-to-read display Overload and misuse protection Auto/manual both ranges Extra features: relative reference, LED b…
Delivery: 2-3 working days
- Complies with the latest CE CATIII safety standard, 1M drop protection
- 3 3/4 digits 3999 counts
- Large, easy-to-read display
- Overload and misuse protection
- Auto/manual both ranges
- Extra features: relative reference, LED backlight, data hold, auto power off, low battery indication
- Includes CATIII test lead and thermocouple probe
Specifications
- Model No. MT‐1232
- Digits 3 3/4 digits 3999 counts
- Accuracy 0.5% best accuracy
- DCV 400mV/4V/40V/400V ±(0.5%+4d) / 600V ±(1.0%+4d)
- ACV 4V/40V/400V ±(0.8%+6d) / 600V ±(1.0%+6d)
- DCA 400μA / 4000μA / 40mA/400mA ±(1.0%+10d) / 10A±(1.2%+10d)
- ACA 400μA/4000μA/40mA/400mA ±(1.5%+10d) / 10 A±(2.5%+15d)
- Resistance 400Ω ±(0.8%+5d) / 4k/40k/400K/4MΩ ±(0.8%+4d) / 40MΩ ±(1.2%+10d)
- Frequency 1/10/100/1K/10K/100K/1M/10MHz ±(0.5%+10d)
- Capacitance 4nF ±(0.5%+9d) / 40nF/400nF/4μF/40μF ±(3.5%+8d), 100μF ±(5.0%+8d)
- Temperature (‐20˚C~1000˚C) < 400˚C±(1.0%+5d) / (‐20˚C~1000˚C) ≥ 400˚C±(1.5%+15d)
- Fuse 10A/250V
- Power source 1.5V AA x 2 (not included)
- Size (HXWXD)mm 147 x 78 x 41 mm
- Test leads model no. MT‐9907
- Individual packing Color Box
Additional information
| Brand | Proskit |
|---|---|
| MPN | 49P01175 |
