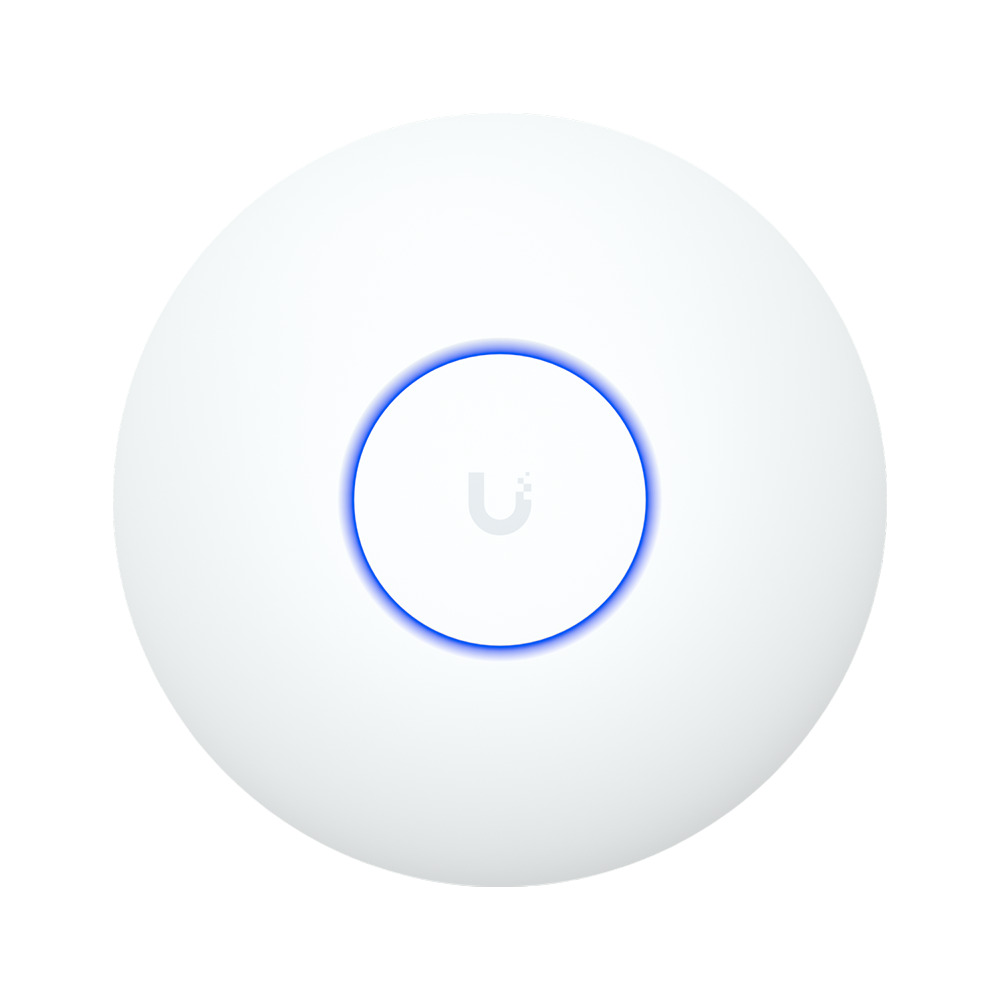

Ubiquiti UniFi 7 Lite Wi-Fi 7 Ceiling Access Point U7-Lite

The Ubiquiti U7 Lite is an access point designed for use within the UniFi system. It supports the Wi-Fi 7 standard, including IEEE 802.11 b/g/n/ax/be protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax/be in the 5 GHz band. The maximum theoretical throughput is 688 Mbps in the 2.4 GHz band and 4300 Mbps in the 5 GHz band. The device features a total of 4 MIMO streams, with two per band, allowing it to support up to 200 clients simultaneously. The access point is equipped with a 2.5G Ethernet port, providing significantly higher bandwidth than standard devices with 1G Ethernet ports. Power is supplied via PoE (802.3af), with a maximum power consumption of 13W. The unit comes with a standard enclosure designed for wall or ceiling mounting.

• Wi-Fi 7 (802.11be) – Ultra-fast speeds, lower latency
• Dual-Band (2.4 GHz + 5 GHz) – No 6 GHz (unlike U7-Pro)
• 4×4 MU-MIMO – Improved multi-device performance
• 2.5G Ethernet Uplink – Future-proof connectivity
• UniFi Ecosystem – Seamless management via UniFi Controller
• PoE-Powered: 802.3af

Specifications

Dimensions & Build

• Size: Ø171.5 × 33 mm (Ø6.8 × 1.3")

• Weight: 313 g (11 oz)

• Material: UV-resistant polycarbonate

• Mounting: Ceiling/wall (included bracket)

Wireless Performance

2.4 GHz Band

• Max. Data Rate: 688 Mbps (40 MHz)

• MIMO Streams: 2×2

• Antenna Gain: 4 dBi

• Max. TX Power: 23 dBm

5 GHz Band

• Max. Data Rate: 4.3 Gbps (240 MHz)

• MIMO Streams: 2×2

• Antenna Gain: 5 dBi

• Max. TX Power: 24 dBm

Coverage & Capacity

• Coverage Area: ~115 m² (1,250 ft²)

• Max. Clients: 200+

• Max. BSSIDs: 8 per radio

Networking & Power

• Ethernet Port: 1× 2.5G (PoE 802.3af)

• Max. Power Draw: 13W

• Voltage Range: 42.5–57V DC

Software & Management

• UniFi Controller Support: v9.0.114+

• Features: Band steering, AI-driven RF optimization, fast roaming (802.11k/v/r), guest hotspot with captive portal, VLAN, RADIUS, PPSK support

Environmental Ratings

• Operating Temp: -30°C to 40°C (-22°F to 104°F)

• Humidity: 5–95% non-condensing

Included Accessories

• Mounting bracket & screws

• Quick start guide
