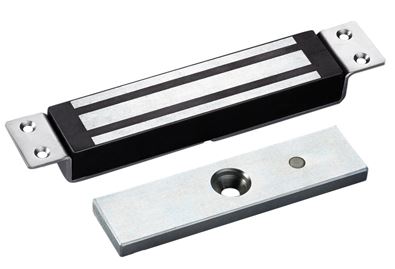

Zudsec Concealed Electromagnetic Lock ZDL-350C
Original price was: €73.00.€46.00Current price is: €46.00.
NC lock = Normally Closed No power → unlocked Power ON → locks NC = Needs power to stay closed Input voltage DC12V、or DC24 (can be customized) Holding Force: 350Kgs(800Lbs) Fail-safe type (Po…
Delivery: 2-3 working days
NC lock = Normally Closed
No power → unlocked
Power ON → locks
NC = Needs power to stay closed
- Input voltage DC12V、or DC24 (can be customized)
- Holding Force: 350Kgs(800Lbs)
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for : Wooden door , Glass door ,Metal door , Fireproof door
- Installation : Concealed Mount
- Power consumption: 12V/320mA
- Delay time:0~9 seconds
- Surface Temp: ≤+20°C
- Operating Temp: 10~+55°C(14-131F)
- Suitable Humidity: 0~90%
- Dimension:252×50.5×29mm(Body)
- 160×44×11mm(Magnet)
- Weight: 2.1Kgs
Additional information
| Brand | Zudsec |
|---|---|
| Lock Type | Electromagnetic |
| Product Type | Lock |
| MPN | ZDL-350C |
