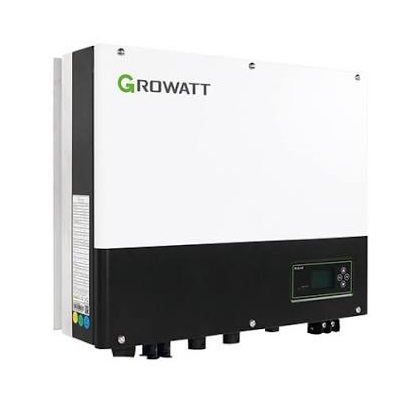

Growatt Single Phase 6KW Hybrid Inverter IP65 SPH 6000TL BL-UP

Leading Functions

• UPS function, 10ms transition
• Scalable system available

High Yields

• DC/AC ratio up to 2.0
• Dual MPP trackers

System Flexibility

• Support lithium and lead-acid battery
• VPP interface ready
• Smart load control via dry contact

Specifications

Input Data (PV Side)

• Max. Recommended PV Power : 10,600 W (for module STC)
• Max. DC Voltage : 550 V
• Start Voltage : 120 V
• MPP Voltage Range / Nominal : 120 V – 550 V / 370 V
• Number of MPP Trackers : 2
• No. of PV Strings per MPPT : 1
• Max. Input Current per MPPT : 13.5 A
• Max. Short-Circuit Current per MPPT : 16.9 A

Output Data (AC On-Grid)

• AC Nominal Power : 6,000 W
• Max. AC Apparent Power : 6,000 VA
• Nominal AC Voltage (Range) : 230 Vac (180 Vac – 260 Vac)
• AC Grid Frequency (Range) : 50 Hz / 60 Hz (45 Hz – 55 Hz / 55 Hz – 65 Hz)
• Rated Output Current : 27.0 A
• Adjustable Power Factor Range : 0.8 Leading … 0.8 Lagging
• Total Harmonic Distortion (THDi) : < 3%
• AC Grid Connection Type : Single Phase

Battery Data (DC Storage)

• Max. AC Output Power : 4,000 W
• Rated Output Current : 17.5 A
• Nominal AC Output Voltage : 230 Vac
• Nominal AC Output Frequency : 50 Hz / 60 Hz
• Total Harmonic Voltage Distortion (THDv) : < 3%
• Automatic Transition/Switch Time : < 10 ms (UPS Class)

System Efficiency

• European Efficiency : 97.20%

Integrated Safety & Protection Devices

• DC Switch / Disconnector  : Yes (Integrated)
• DC Reverse Polarity Protection : Yes
• AC / DC Surge Protection : Yes
• Battery Reverse Protection : Yes
• AC Short-Circuit Protection : Yes
• Ground Fault & Grid Monitoring : Yes
• Anti-Islanding Protection : Yes
• Residual-Current Monitoring Unit (RCMU) : Yes
• Insulation Resistance Monitoring : Yes

General & Mechanical Data

• Dimensions (W / H / D) : 565 × 456 × 188 mm
• Weight : 27 kg
• Operating Temperature Range : -25°C up to +60°C
• Nighttime Self-Consumption : <10 W
• Inverter Topology : Transformerless
• Cooling Concept : Natural Convection (Fanless)
• Environmental Protection Rating : IP65
• Relative Humidity Range : 0% – 100%
• Max. Operational Altitude : 2,000 m
• PV DC Connection Type : H4 / MC4 (Optional)
• Battery DC Connection Type : OT Terminal
• AC Connection Type : Plug-in Connector
• User Interface / Display : LCD + LED Status Indicators
• Built-in Communication Interfaces : RS485, CAN, USB
• Optional Wireless Monitoring Modules : RF / Wi-Fi / GPRS dataloggers

Compliance Certifications

• CE, IEC 62109, G98/G99, VDE 0126-1-1,
• AS4777, CEI 0-21, VDE-AR-N4105, EN50549,
• IEC 61727, IEC 62116, IEC 62040
