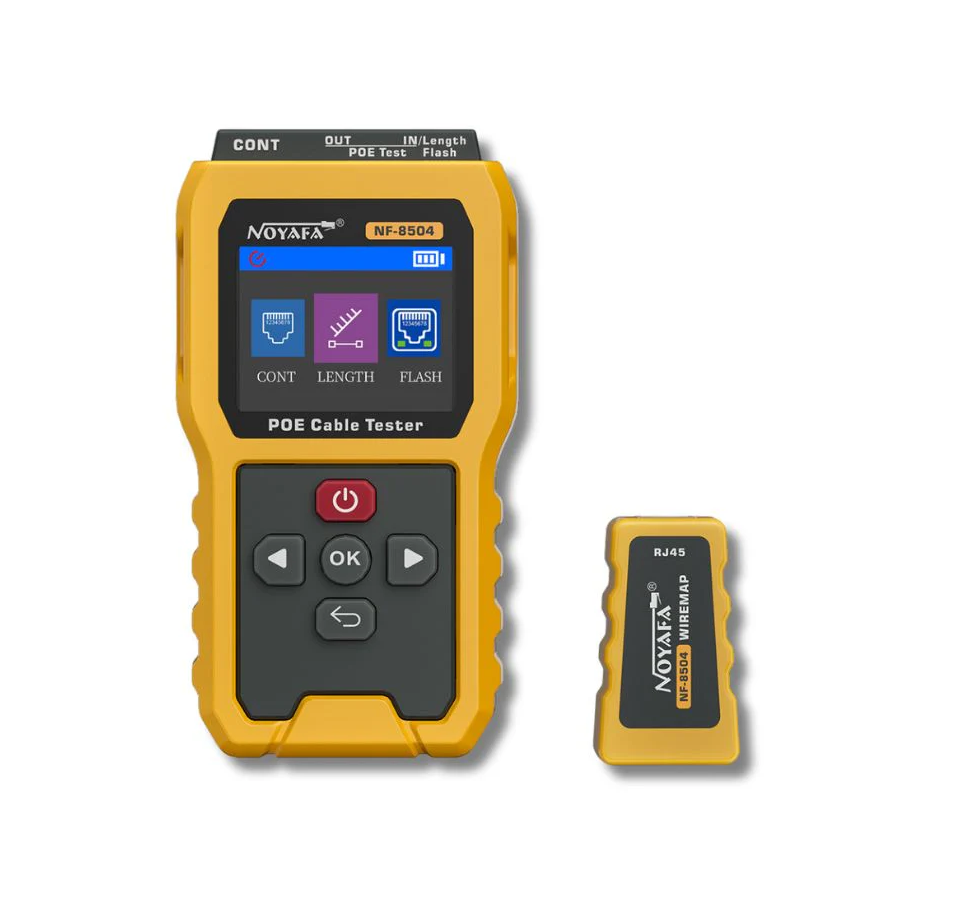

Noyafa Multi-Function Cable Tester for Continuity & Wiremap, PoE, Length Measurement, Port Flash, Color Screen & Rechargeable Battery NF-8504

• Continuity & Wiremap: Instantly verify each pair on CAT5/CAT6 cables for open/short or miswiring, preventing downtime.
• PoE Testing (DC 5–60 V): Support IEEE802.3af/at/bt standards and non-standard loads; ensures safe PoE power delivery.
• Length Measurement (5–300 m): Pinpoints cable breaks or distance to fault up to 300 m, saving time on cable runs.
• Port Flash (10/100/1000 Mbps): Quickly identify active switch ports and duplex mode (full/half) by flashing link LEDs.
• Remote Continuity Alignment: Includes a detachable RJ45 remote to check cable sequence in-wall or across patch panels.
• 2.4″ Full-Color LCD: Large, easy-to-read screen displays test modes, icons and results at a glance—even in low light.
• Anti-Burning Protection (≤ 60 V): Safeguards the tester against accidental live voltage up to 60 V, prolonging device lifespan.
• 3.7 V 1500 mAh Rechargeable Battery: Delivers hours of continuous use; USB-C charging means no more disposable batteries.
• Auto-Off: Conserves battery life by powering down after 5/15/30/60 minutes of inactivity.

Specifications

• LCDDisplay: 2.4 Color Screen
• Continuity Testing:
  Cable Type: CAT5/CAT6
  Testing Range: 600m
  STP&UTP: Yes
  Short Circut Yes
• POE Testing：
  Range: DC5V~60V
  Standards: IEEE802.3af/at/bt
  Load Testing: 2~80W
  POE Output Yes
  Power Supply Pin Yes
• Port Flash Function Yes
• Length Measurement Range: 5~300m
• Low Battery Indicator Yes
• Battery: 3.7V 1500mAh Lithium Battery
• Auto Off: 15m/30m/60m/OFF
• Anti- burning Level: DC60V
• Dimension: 138.5×76×30mm
