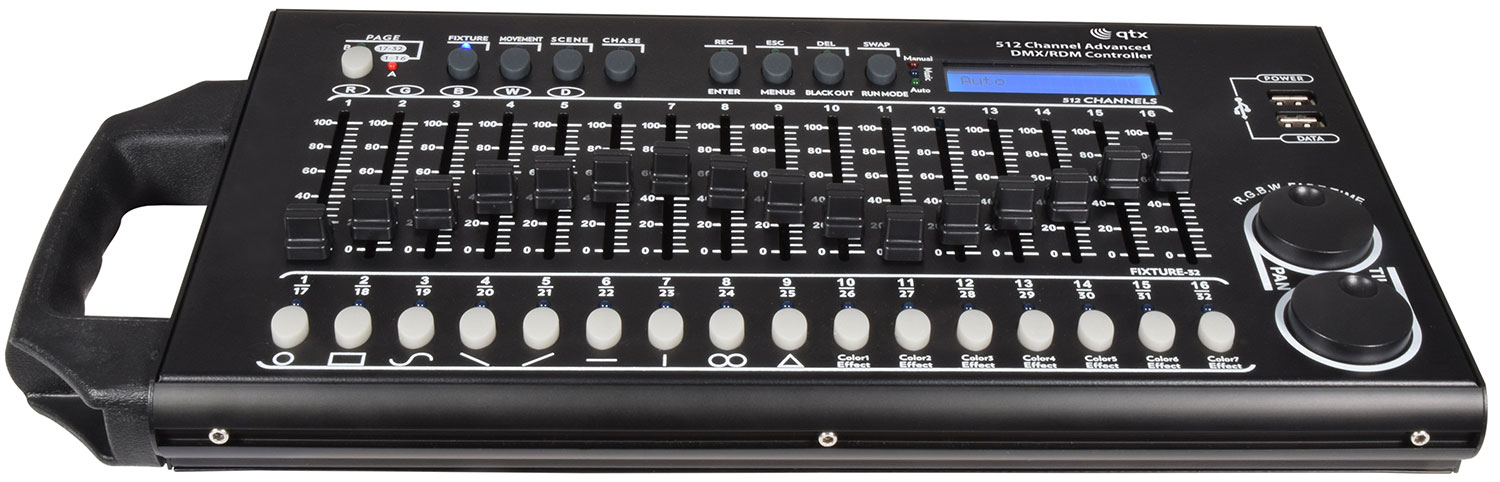

QTX ADMX-512 Advanced 512 Ch DMX/RDM Controller 154.105UK

A powerful 512 channel DMX/RDM controller with 32 fixtures. Each fixture controls up to 32 channels per unit. There are 32 storable scenes and 32 storable chases, each with up to 100 steps which can be triggered manually, by sound or automatically using the time faders between 0.1 seconds and 10 minutes. An integrated USB port provides back up of up to 16 banks of DMX settings, scenes and chases on an attached USB storage device. The hardwearing metal chassis can be used standalone or 3U rackmount if preferred and the detachable carry handle makes the unit easy to move from event to event.

• 32 fixtures each with 32 channels
• 32 storable scenes
• 16 channel slider with page up and page down
• 32 storable chases up to 100 steps, with music, auto or manually triggered sequences
• Separate control wheels for data entry or PAN and Tilt control of moving heads
• 2 Line digital display panel, Blackout button and integrated microphone
• Up to 16 memory banks of DMX settings, illumination scenes and chases can be stored on an attached USB storage device (max 32GB FAT32)
• 3U Rack mountable hardwearing metal chassis with detachable carry handle

Specifications

DMX channels: 512

Power supply: 9Vdc, 500mA

Dimensions: 380 x 190 x 38mm

Weight: 1.982kg
