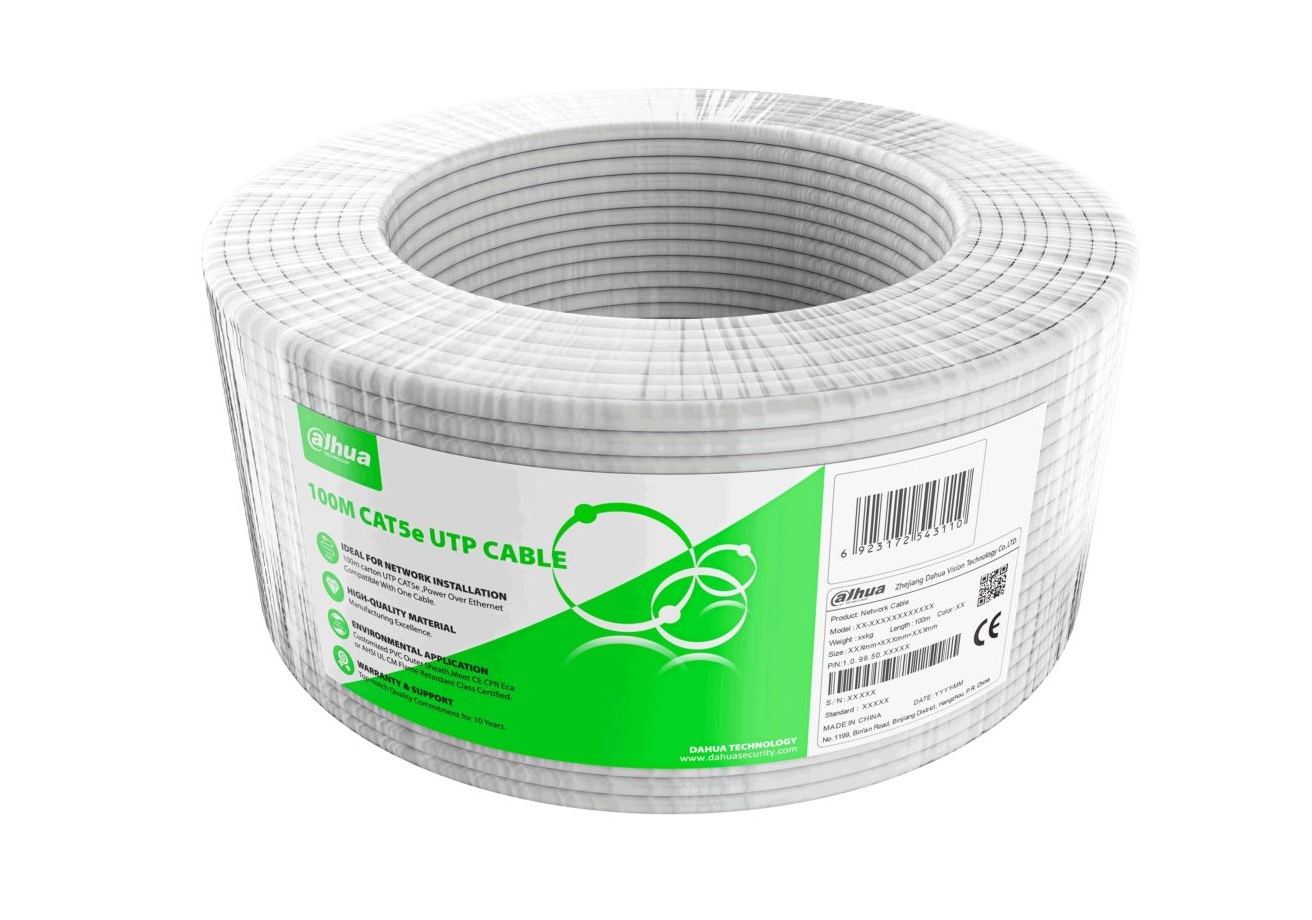

Dahua CAT5e Cable CCA 100m PFM922I-5EUN-C-100-white

Important Note: CCA Cables are not recommended for POE installations

• 100m (328.08 ft)/carton UTP CAT5e, power over Ethernet, compatible with one cable
• Manufacturing excellence.
• Customized PVC outer sheath, equipped with certain flame retardancy.
• Top-notch quality commitment for 10 years.



Specifications

Conductor

• Material : CCA (Copper content: 22%–31%)
• Diameter : 0.5 mm ± 0.01 mm
• Wire Gauge : 24AWG

Insulation

• Material : HDPE
• Min. Average Thickness : 0.18 mm
• Diameter : 0.90 mm ± 0.06 mm
• Color : Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Rip Cord

• Material : Polyester fiber
• Specification : 500D

Sheath

• Material : FR-PVC (ROHS compliant)
• Min. Average Thickness : 0.5 mm
• Diameter : 5.1 mm ± 0.3 mm
• Color : Orange

Electrical

• Max. DC Resistance of a Single Conductor : 14.5Ω/100 m
• Min. Insulation Resistance : 5000MΩ·km
• Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
• Max. Mutual Capacitance : 5.6nF/100 m
• Dielectric Strength : No breakdown with 1KV DC for 1 min

Mechanical

• Tensile Strength : Sheath≥13.5 MPa, insulation≥16 MPa
• Elongation at Break : Sheath≥150%, insulation≥300%
• Installation Bending Radius : >8 times of outer cable diameter
• Conductor Elongation at Break : ≥8%

Environmental

• Shrinkage of Insulation : ≤5%
• Color Migration Resistance of Insulation : No migration
• Sheath Tensile Strength and Elongation at Break after Aging : ≥12.5 MPa, ≥100%
• Low Temperature Bending Test : No cracking after the test
• Heat Shock Test : No cracking after the test
• Operation Temperature : –20°C to +60°C (–4°F to 140°F)
• Installation Temperature : 0°C to +50°C (32°F to 122°F)
• Storage Temperature and Humidity : –10°C to +40°C (14°F to 104°F), <60% (RH)

Security

• Vertical Fire Propagation Test : Comply with IEC 60332-2-2

Packaging

• Length : 100 m ± 1 m
• Packaging Dimensions : 537 mm × 242 mm × 253 mm (L × W × H)
• Net Weight : 2 kg ± 0.4 kg
• Gross Weight : 10.8 kg ± 0.8 kg
• Inner Carton Dimensions : 220 mm × 220 mm × 105 mm (L × W × H)
• Packaging Method : 100 m per carton, 5 cartons per transport package

Executive Standard

• Executive Standard : Q/DXJ 067-2019
