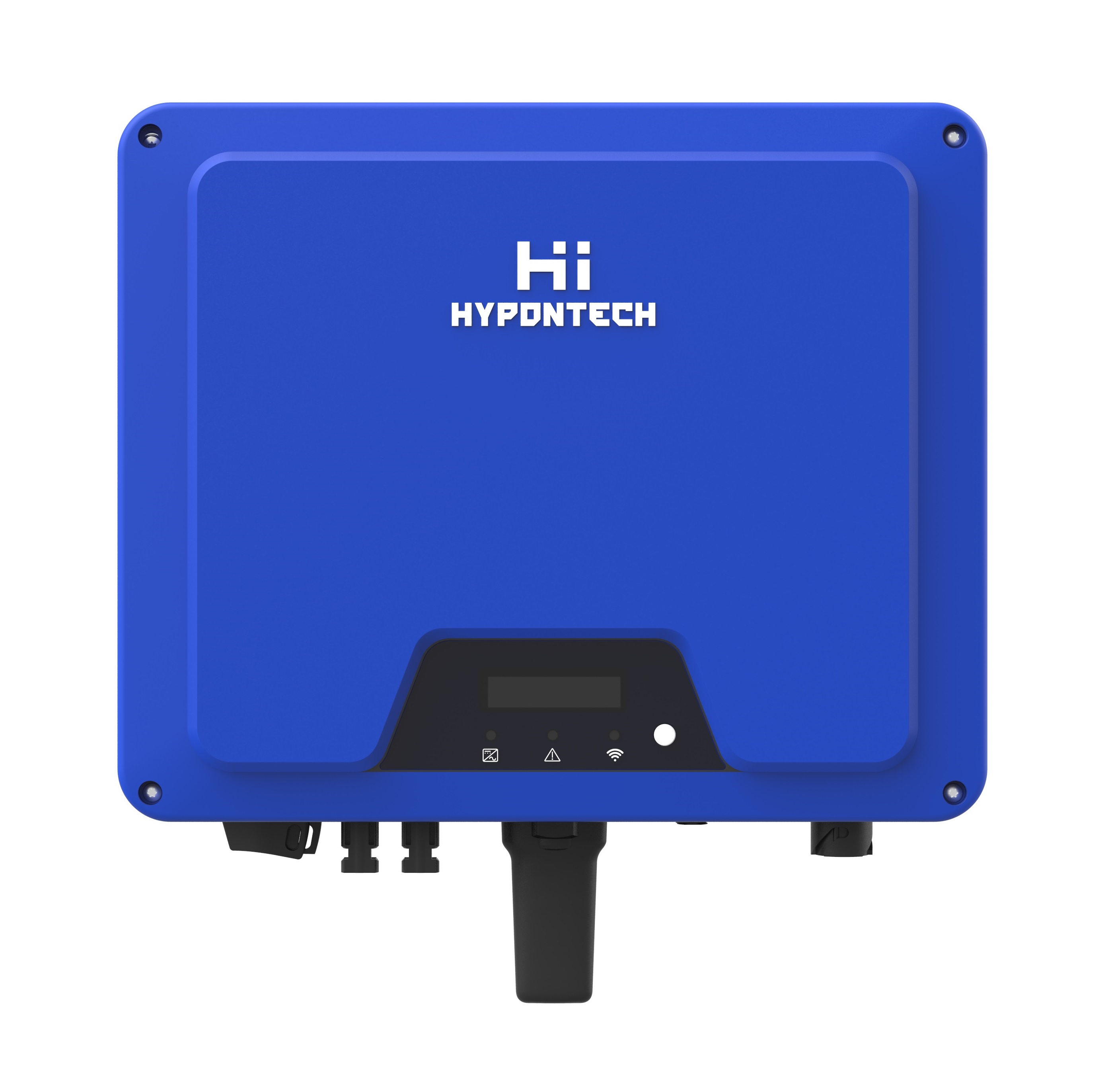

HYPONTECH OnGrid Inverter HPT-10000 Three Phase 10KW

HPT-10000 Inverter 3 Phase 10KW

• Peak Efficiency 98.5%
• Max DC Overload 50%
• Aluminum Alloy casting
• MES-FCT-CRM  Ifrastructure
• Easy Installation and Service

Specifications

HPT – 10000

​PV Input

• Max PV Power (W) : 15000
• Max Input Voltage (V) : 1100
• Start Up Voltage (V) : 180 V
• Rated Input Voltage (V) : 620
• MPPT Voltage Range (V) : 150-1000
• Max Input Current (A) : 16
• Max Short Circuit Current (A) : 20
• No. of MPPTs : 2
• No. of Strings Per MPPT : 1

AC Output

• Rated Power (W) : 10000
• Max. Apparent Power (VA) : 11000
• Rated Grid Volatege (Vac) : 380/400
• Rated Grid Frequency (Hz) : 50/60
• Max Output current (A) : 15.9
• Power Factor :  0.8 ind – 0.8 cap
• THDi @Rated Power <3%
• Grid Connection : 3L-N-PE

Efficiency

• Max  Efficiency : 98.5%
• Euro Efficiency: 97.8%
• MPPT Efficiency: 99.9%

Protection Function

• Anti Islanding Proctection : Intergrated
• PV String Onput Reverse Polarity Protection : Intergrated
• Insulation Resistance Detection :  Intergrated
• Resudula Current Monitoring Unit :  Intergrated
• Output Over Current Protection :  Intergrated
• Output Short Circuit Protection : Intergrated
• Over Voltage Protection :  Intergrated
• Surge Protection :  DC Type II, SC Type II

General Data

• Dimensions (W*H*D)(mm) : 425*351*160
• Weght (Kg): 15
• Noise Emission (Typical) dB(A) : 20
• User Interface : LCD&LED
• PV connection Type : MC4
• AC Conection Type : Plug in connection
• Communication : RS485/WIFI/4G/LAN
• Colling Method : Natural Cooling
• Operating Ambient Temperature (C) : -25 to +60
• Relative Humidity (%) : 0 -100
• Max Operating Altitude (m) : 2000
• Protection Class : IP65
• Climatic Category (IEC 60721-3-4) :  4K4H
• Topology : Tranformerless
• Night Consumption (W) : <1
