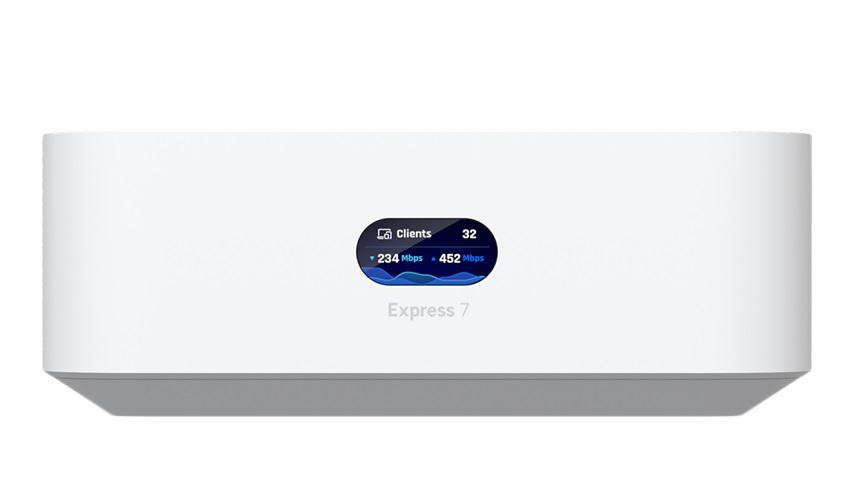

Ubiquiti UniFi Express 7 Cloud Gateway & Wi-Fi 7 Access Point UX7

Ubiquiti Express 7 is a Cloud Gateway designed to work within the UniFi system. It combines the functions of a controller and a router, allowing remote network management via the cloud without the need for an additional Cloud Key. The device features 1x 10G Ethernet WAN port and 1x 2.5G Ethernet LAN port. To ensure a backup connection, you can purchase the UniFi LTE Backup device. Express 7 can only control devices from the UniFi Networks series (e.g., access points, switches) and does not support cameras, phones, or the Access series. A maximum of 30 devices can be connected. The offered product can broadcast a Wi-Fi 7 wireless network and supports the IEEE 802.11 b/g/n/ax/be protocols in the 2.4 GHz band, IEEE 802.11 a/n/ac/ax/be in the 5 GHz band, and IEEE 802.11 ax/be in the 6 GHz band. The maximum theoretical throughput is 688 Mbps on 2.4 GHz, 4300 Mbps on 5 GHz, and 5700 Mbps on 6 GHz. In total, the device uses 6 MIMO streams (two per frequency band) and allows up to 300 users to connect simultaneously.

• Wi-Fi 7 (802.11be) – Up to 5.7 Gbps wireless speed
• 10G Ethernet WAN + 2.5G LAN – High-speed wired connectivity
• UniFi OS Cloud Management – Remote control via UniFi Network
• Compact Desktop Design – Space-saving deployment
• Advanced Security – IPS/IDS, DPI, VPN, and firewall

Specifications

• Model: UniFi Express UX7

• Type: Cloud Gateway + Wi-Fi 7 AP

• Form Factor: Compact Desktop

• Dimensions: 117 × 117 × 42.5 mm (4.61 × 4.61 × 1.67")

• Weight: 422 g (14.9 oz)

• Enclosure Material: Polycarbonate

• Display: 0.96" LCM status screen

Networking & Performance

• WAN Port: 1 × 10G Ethernet

• LAN Port: 1 × 2.5G Ethernet

• Max. Firewall Throughput: 2.3 Gbps (with IDS/IPS enabled)

• Max. Concurrent Clients: 300+

• Coverage Area: 160 m² (1,750 ft²)

Wi-Fi 7 (802.11be) Wireless

• Bands: 2.4 GHz, 5 GHz, 6 GHz

• Max. Speed:

  • 2.4 GHz: 688 Mbps

  • 5 GHz: 4.3 Gbps

  • 6 GHz: 5.7 Gbps

• MIMO: 2×2 MU-MIMO (all bands)

• Antenna Gain:

  • 2.4 GHz: 4 dBi

  • 5 GHz: 7 dBi

  • 6 GHz: 6 dBi

• Max. TX Power:

  • 2.4 GHz: 23 dBm

  • 5 GHz: 26 dBm

  • 6 GHz: 24 dBm

• Security: WPA3, WPA2, WPA-Enterprise, PPSK

Security & Firewall

• Stateful Firewall

• Layer 7 Application Control

• Deep Packet Inspection (DPI)

• Intrusion Prevention (IPS/IDS) – 20,000+ signatures

• Content Filtering & Ad Blocking

• VLAN & Guest Traffic Isolation

VPN & SD-WAN

• Site-to-Site VPN (IPsec, OpenVPN, WireGuard)

• Teleport VPN (Zero-Config Remote Access)

• SD-WAN with Failover Support

Power & Environment

• Power Method: USB-C (5V/5A, included adapter)

• Max. Power Consumption: 22W

• Operating Temperature: -10°C to 40°C (14°F to 104°F)

• Humidity: 5–95% non-condensing

• ESD Protection: ±8kV (Air), ±4kV (Contact)

Management & Software

• UniFi Network Application (v9.0+ required)

• Bluetooth & Ethernet Config

• Dynamic Routing (OSPF)

• mDNS & IGMP Proxy

• RADIUS Server (with RadSec TLS support)

Applications

• Small/Medium Business (SMB) Networking

• High-Speed Home Wi-Fi 7 Deployment

• Remote Work VPN Gateway

• IoT & Guest Network Segmentation
